Deutsch DT3-1-CAT 3 Way DT Series CAT Spec Connector Kit with Green Band Contacts

DEUTSCH DT3-1-CAT 3-way DT kit: everything in one part number

Order the DT3-1-CAT and you get every genuine DEUTSCH part needed for one complete 3-way DT connection, so there is nothing to match up and no missing wedgelock when you get to the job.

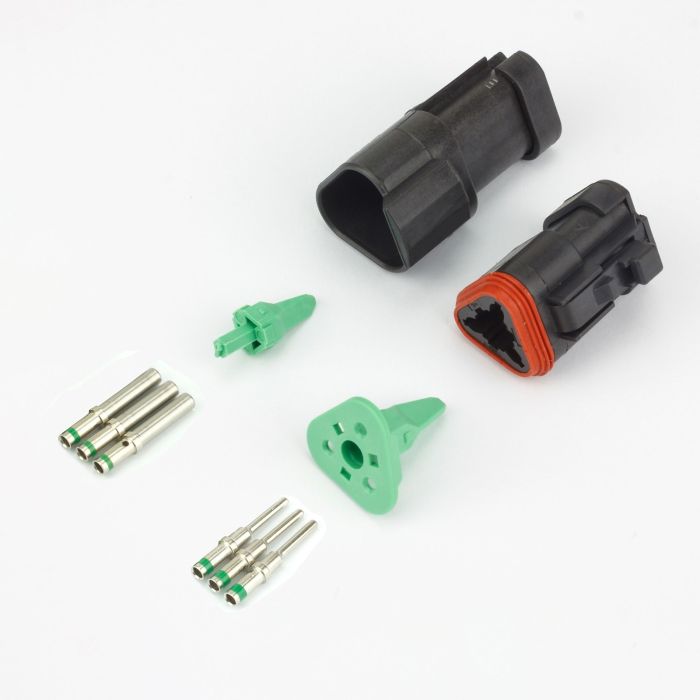

In the kit

• 1 x DT04-3P-E005 receptacle
• 1 x DT06-3S-EP06 plug
• 3 x 0460-215-16141 pins
• 3 x 0462-209-16141 sockets
• 1 x W3P wedgelock
• 1 x W3S-P012 wedgelock

This is the CAT-spec version, with the E005/EP06 housings and P012 wedgelock used on Caterpillar machinery, so it matches what is already on CAT equipment.

Before you crimp

The DT Series uses size 16 contacts rated up to 13A for 0.5–2.0mm² (14–20 AWG) wire. Solid contacts like these are crimped with a solid-contact crimper such as the HDT-48-00.

Pins go in the DT04 receptacle and sockets in the DT06 plug. Fit the wedgelocks last to lock the contacts in place.

All kits are genuine DEUTSCH (TE Connectivity) parts, packed and sent from Australia.
