Deutsch DT2-1-L012 DT Series Flange Mount Connector Kit

DEUTSCH DT2-1-L012 2-way DT kit: everything in one part number

Order the DT2-1-L012 and you get every genuine DEUTSCH part needed for one complete 2-way DT connection, so there is nothing to match up and no missing wedgelock when you get to the job.

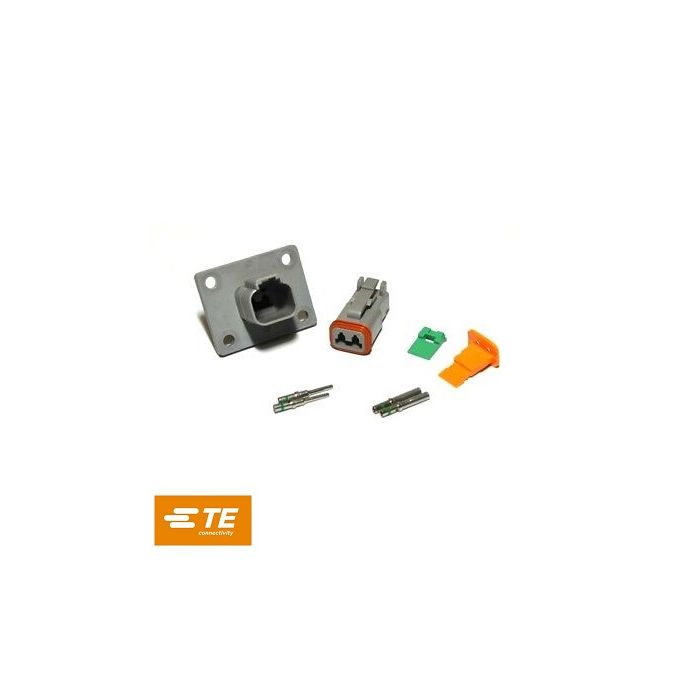

In the kit

• 1 x flange mount receptacle with wedgelock
• 1 x plug with wedgelock
• 2 x pins
• 2 x sockets

The receptacle has a flange (L012), so it bolts straight to a panel, bulkhead or bracket instead of hanging in the loom.

Before you crimp

The DT Series uses size 16 contacts rated up to 13A for 0.5–2.0mm² (14–20 AWG) wire. Solid contacts like these are crimped with a solid-contact crimper such as the HDT-48-00.

Pins go in the DT04 receptacle and sockets in the DT06 plug. Fit the wedgelocks last to lock the contacts in place.

All kits are genuine DEUTSCH (TE Connectivity) parts, packed and sent from Australia.
