Deutsch DT12-1 DT Series 12 Pin Connector Kit

DEUTSCH DT12-1 12-way DT kit: everything in one part number

Order the DT12-1 and you get every genuine DEUTSCH part needed for one complete 12-way DT connection, so there is nothing to match up and no missing wedgelock when you get to the job.

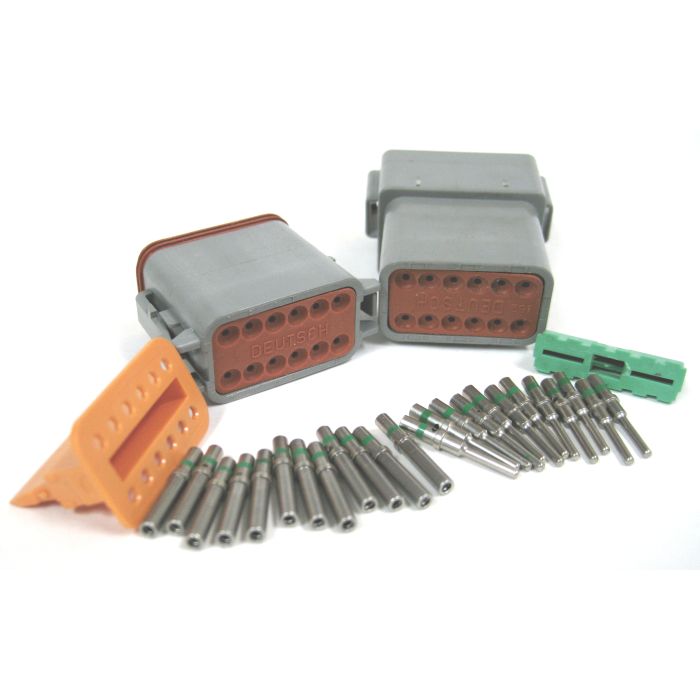

In the kit

• 1 x DT Series 12-way receptacle (male housing)
• 1 x DT Series 12-way plug (female housing)
• 12 x pins and 12 x sockets
• Wedgelocks for both housings
• Seals as supplied

Before you crimp

The DT Series uses size 16 contacts rated up to 13A for 0.5–2.0mm² (14–20 AWG) wire. Solid contacts like these are crimped with a solid-contact crimper such as the HDT-48-00.

Pins go in the DT04 receptacle and sockets in the DT06 plug. Fit the wedgelocks last to lock the contacts in place.

All kits are genuine DEUTSCH (TE Connectivity) parts, packed and sent from Australia.
